Allegato a Le CPU non sono tutte uguali

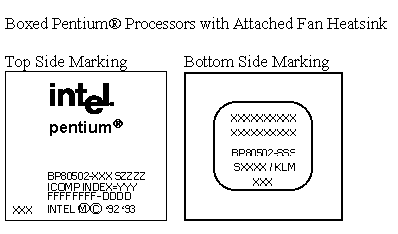

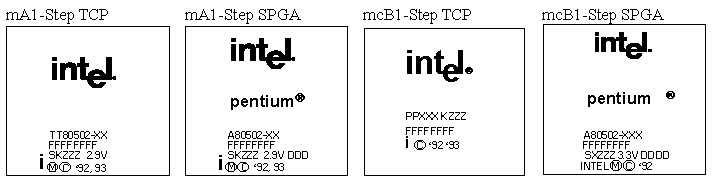

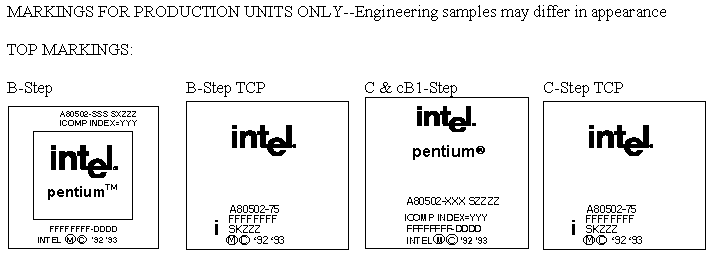

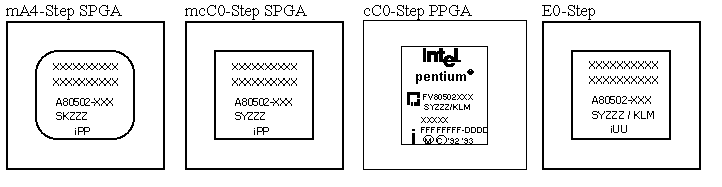

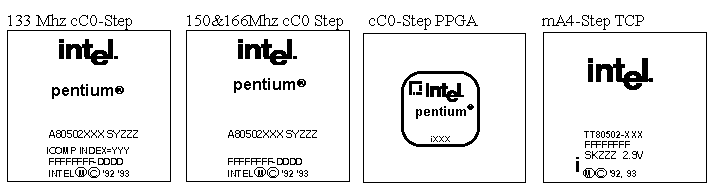

NOTES: · XX or XXX = Core Speed (MHz). · BB = Bus speed (MHz) · SX ZZZ = S-Spec number. · FFFFFFFF = FPO # (Test Lot Traceability #). · For packages with heat spreaders, the inner line box defines the spreader edge. · Ink Mark = All logo information on the heat spreader. · Laser Mark = The two lines of information above and below the heat spreader. All bottomside information is laser mark. · QZZZZ = Sample Specification number. · DDDD = Serialization code. · YYY = iCOMP® index (610 for 75-MHz and 735 for 90-MHz, 815 for 100-MHz, 1000 for 120-MHz, 1110 for 133-MHz, 1176 for 150-MHz and 1308 for 166-MHz parts.) · TT = TCP Package, A = SPGA Package · The bottom markings on the C and cB1-step production units will replace the existing bottom marking on C-step parts effective 7/95. · UU = 75 for 75-MHz Pentium Processor and PP for all other speeds. · K = V for VRE voltage range and S for standard voltage range L = M for min valid MD timings and S for min valid standard timings M = U is not tested for DP, is tested for UP and MP and S is tested for DP, UP and MP.
